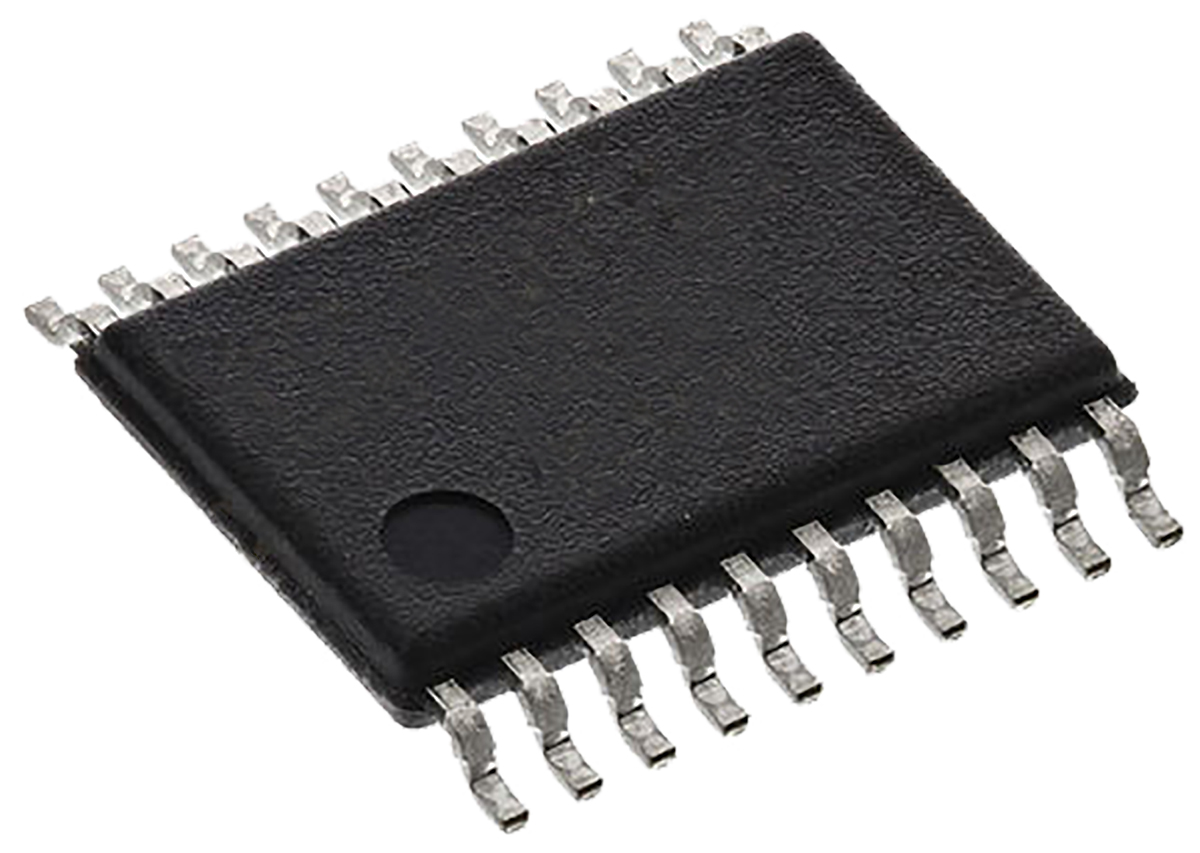

Maxim Integrated MAX4614EUD+

Description

Dimensions: 5.1 x 4.5 x 0.95mm

Mounting Type: Surface Mount

Package Type: TSSOP

Minimum Operating Temperature: -40 °C

Maximum Operating Temperature: +85 °C

Pin Count: 14

Channel-to-Channel Matching (ΔRon): 200mOhm

HTSUS: 8542.39.0001

RoHS Status: ROHS3 Compliant

Operating Temperature: -40°C ~ 85°C (TA)

Package / Case: 14-TSSOP (0.173″, 4.40mm Width)

Switch Time (Ton, Toff) (Max): 12ns, 10ns

Current – Leakage (IS(off)) (Max): 1nA Voltage – Supply, Dual (V±): – -3db Bandwidth: 70MHz REACH Status: REACH Unaffected Multiplexer/Demultiplexer Circuit: 1:1 Package: Tube Channel Capacitance (CS(off), CD(off)): 5pF, 5pF Moisture Sensitivity Level (MSL): 1 (Unlimited) Voltage – Supply, Single (V+): 2V ~ 5.5V standardLeadTime: 25 Weeks Switch Circuit: SPST – NO Number of Circuits: 4 Mounting Type: Surface Mount Series: – Crosstalk: -96dB @ 100kHz On-State Resistance (Max): 10Ohm Supplier Device Package: 14-TSSOP Charge Injection: 6.5pCBase Product Number: MAX4614 ECCN: EAR99

This ismanufactured by Maxim Integrated. The manufacturer part number is MAX4614EUD+. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 14 pins. Ron variations channel-to-channel matching included [Channel-to-Channel Matching (ΔRon)]. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 14-tssop (0.173″, 4.40mm width). Has a 12ns, 10ns maximum switch time. The maximum current leakage of the product included 1na. A 70mhz of bandwidth. In addition, it is reach unaffected. Ratio of multiplexer/demultiplexer circuit 1:1. It is shipped in tube package . Features 5pf, 5pf channel capacitance. Its typical moisture sensitivity level is 1 (unlimited). Single voltage supply of 2v ~ 5.5v. It has a long 25 weeks standard lead time. Features switch circuit of spst – no. It integrates 4 circuits. A -96db @ 100khz of crosstalk. It has a maximum on-state resistance of 10ohm. 14-tssop is the supplier device package value. It has 6.5pc charge injection parameters. Moreover, it corresponds to max4614, a base product number of the product. The product is designated with the ear99 code number.
