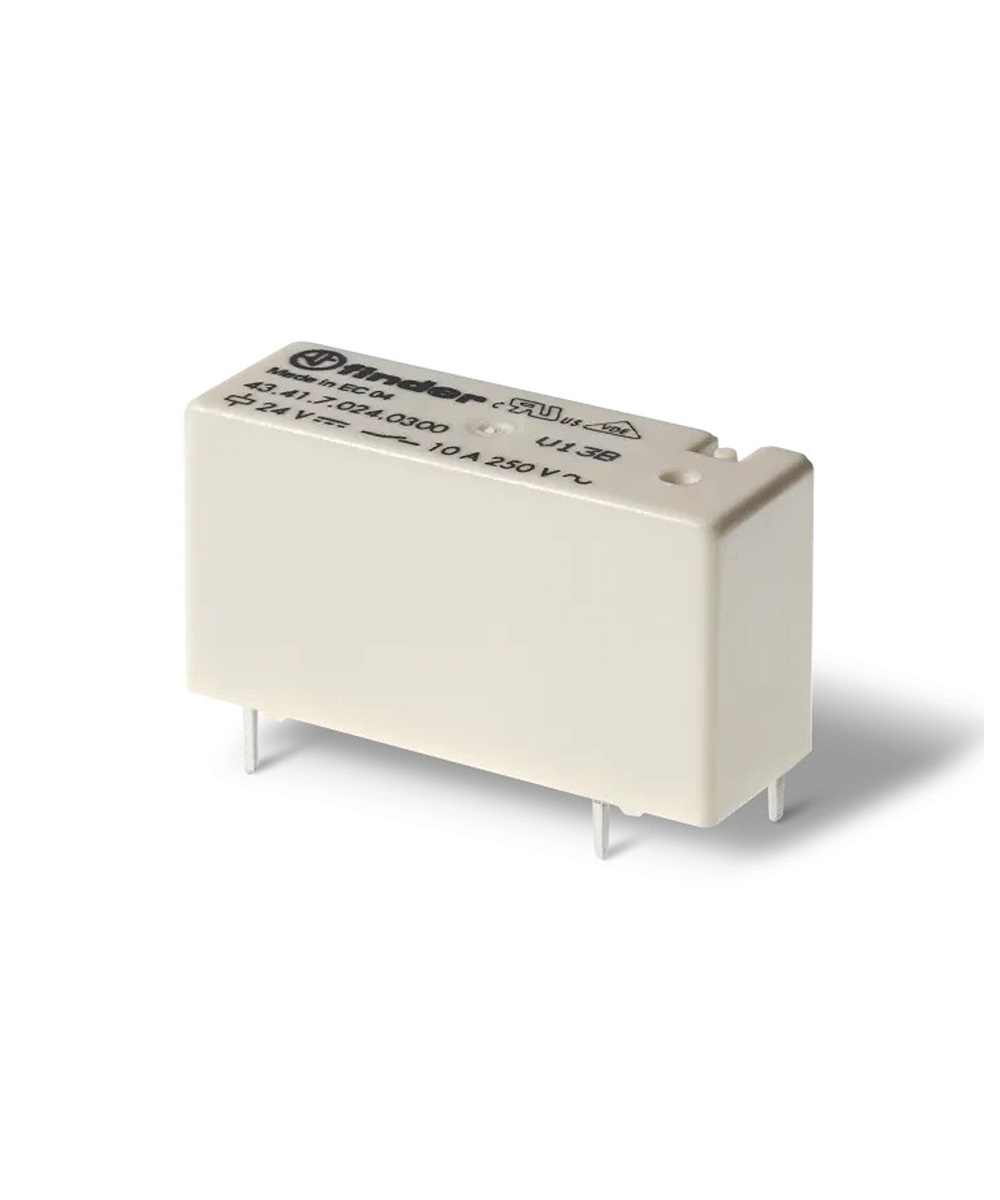

24 Volt Single Latching Coil, SPDT Conta

Description

Dimensions: 19 x 15.2 x 15.5mm

Coil Voltage: 24V dc

Terminal Type: PCB Pin

Coil Resistance: 1440Ω

Life: 1 x 10^7 cycles

Standards Met: CQC File No:CQC15002121475, cULus File No:E134517, VDE File No:40040757

Coil Power: 800mW

Maximum Switching Voltage DC: 30V dc

Maximum Switching Power DC: 300 W

Isolation Coil To Contact: 2kV ac

Maximum Operating Temperature: +80°C

Switching Current: 10A

Maximum Switching Current AC: 10 A Latching: Yes Contact Configuration: SPDT Depth: 15.2mm Mounting Type: PCB Mount Series: HF3F-L Length: 19mm Height: 15.5mm Maximum Switching Current DC: 10 A Maximum Switching Voltage AC: 277V Minimum Operating Temperature: -40°C Maximum Switching Power AC: 2.77 kVA Number of Poles: 1 Contact Material: Silver Alloy

This is 24 Volt Single Latching Coil SPDT Conta manufactured by Hongfa Europe GMBH. The manufacturer part number is HF3F-L/24-1ZL1T(610). The given dimensions of the product include 19 x 15.2 x 15.5mm. The coil voltage of the product is 24v dc. The terminal is a pcb pin type. It holds up to 1440ω coil resistance. It is capable of doing 1 x 10^7 cycles in a lifetime . The product complies with all safety standards, such as cqc file no:cqc15002121475, culus file no:e134517, vde file no:40040757. Robust coil power of 800mw. While it carries 30v dc of maximum DC switching voltage. It bears a maximum 300 w of DC switching power. The product has 2kv ac isolation coil to contact. It has a maximum operating temperature of +80°c. It is integrated with 10a switching current. It has a maximum 10 a switching current AC . Latching Options – yes. The contact is equipped with spdt configuration. The product comes in 15.2mm depth. The product is available in pcb mount configuration. The product hf3f-l, is a highly preferred choice for users. Its accurate length is 19mm. In addition, the height is 15.5mm. It has a minimum 10 a DC switching current . It has a maximum AC switching voltage of 277v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.77 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials.
