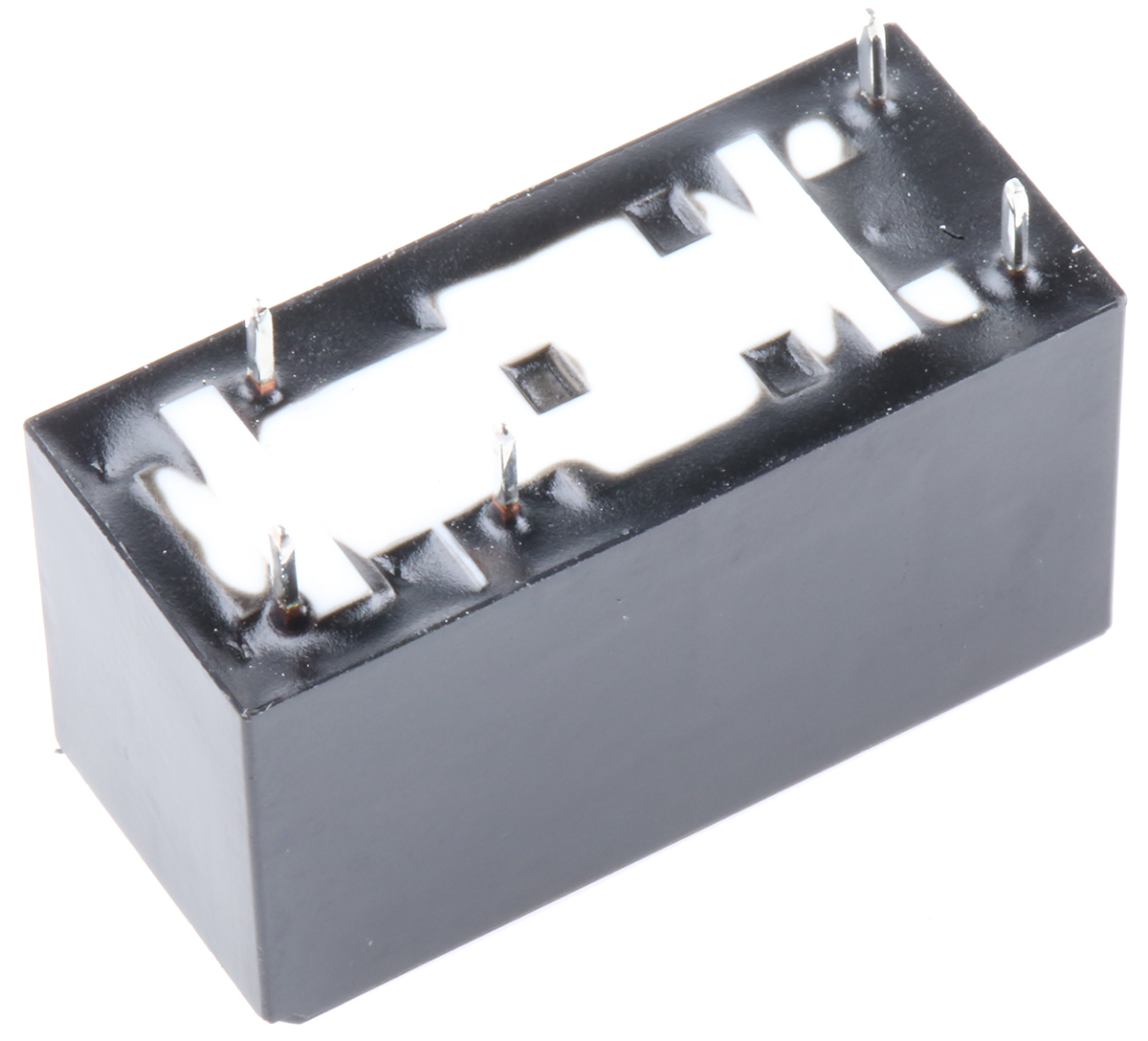

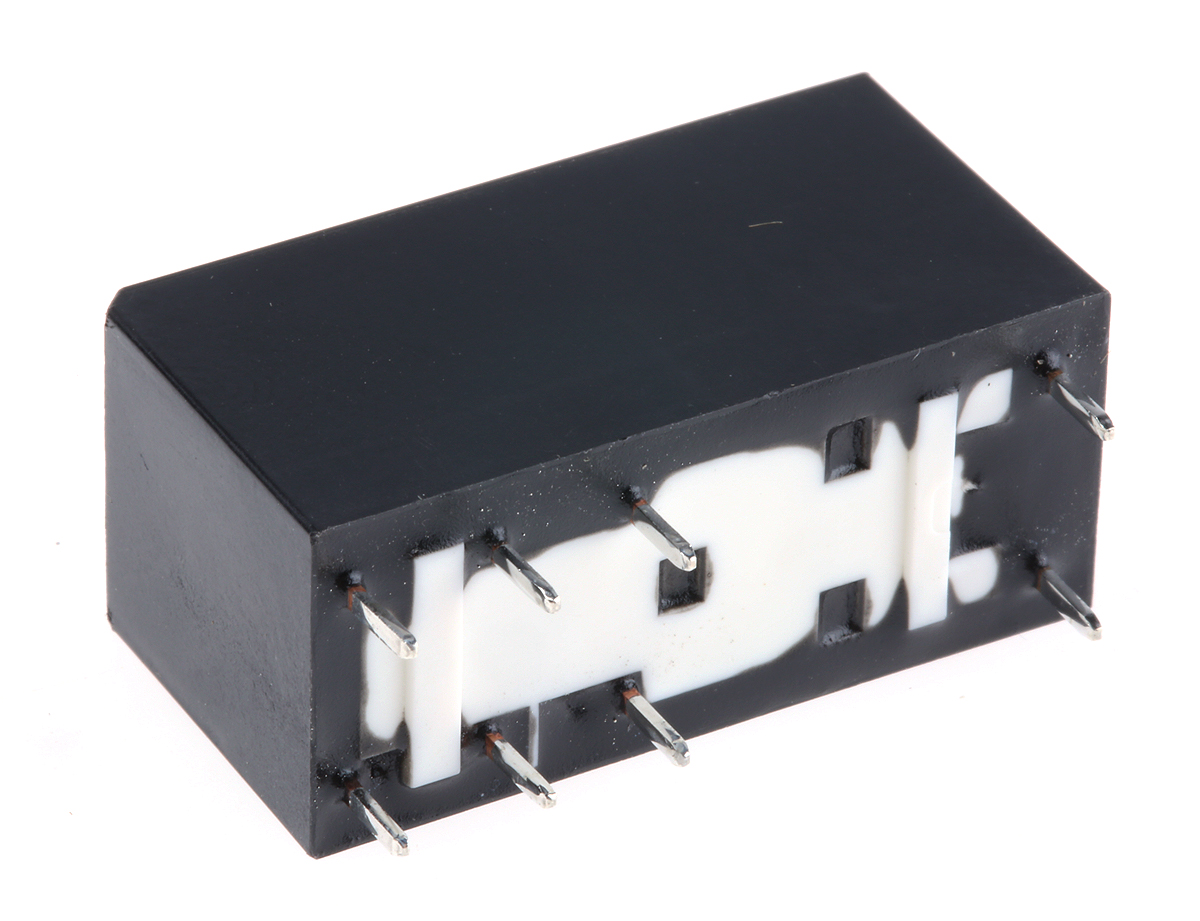

24 Volt Double Latching Coil, SPDT Conta

Description

Dimensions: 29 x 12.7 x 15.7mm

Coil Voltage: 24V dc

Terminal Type: PCB Pin

Coil Resistance: 1440Ω

Life: 2 x 10^6 cycles

Standards Met: CQC File No:CQC17002168381, cULus File No:E134517, VDE File No:116934

Coil Power: 600mW

Maximum Switching Voltage DC: 300V dc

Isolation Coil To Contact: 5kV

Maximum Operating Temperature: +85°C

Switching Current: 20A

Maximum Switching Current AC: 20 A

Latching: Yes Contact Configuration: SPDT Depth: 12.7mm Mounting Type: PCB Mount Series: HF115F-L Length: 29mm Height: 15.7mm Maximum Switching Current DC: 20 A Maximum Switching Voltage AC: 440V Minimum Operating Temperature: -40°C Maximum Switching Power AC: 4 kVA Number of Poles: 1 Contact Material: Silver Alloy

This is 24 Volt Double Latching Coil SPDT Conta manufactured by Hongfa Europe GMBH. The manufacturer part number is HF115F-L/24-Z3L2TF(610). The given dimensions of the product include 29 x 12.7 x 15.7mm. The coil voltage of the product is 24v dc. The terminal is a pcb pin type. It holds up to 1440ω coil resistance. It is capable of doing 2 x 10^6 cycles in a lifetime . The product complies with all safety standards, such as cqc file no:cqc17002168381, culus file no:e134517, vde file no:116934. Robust coil power of 600mw. While it carries 300v dc of maximum DC switching voltage. The product has 5kv isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 20a switching current. It has a maximum 20 a switching current AC . Latching Options – yes. The contact is equipped with spdt configuration. The product comes in 12.7mm depth. The product is available in pcb mount configuration. The product hf115f-l, is a highly preferred choice for users. Its accurate length is 29mm. In addition, the height is 15.7mm. It has a minimum 20 a DC switching current . It has a maximum AC switching voltage of 440v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 4 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials.
